UV System

Discover the exceptional quality of our UV System, crafted by an experienced exporter, manufacturer, and supplier with over 15 years of industry expertise. Our supreme UV System range, including the UV System With Intensity Monitor, UVGI For AHU Machine, Small UV System, UV Disinfection System, and Big UV System For STP And ETP, stands out as the must-have solution for unrivaled disinfection and hygiene in diverse applications. If you are seeking the optimum combination of safety, efficiency, and reliability, our products offer unmatched sterilization capability, advanced intensity monitoring, remarkable energy efficiency, easy installation, and low maintenance requirements. When compared to traditional disinfection methods, our UV Systems provide a faster and chemical-free approach, making them the ideal purchase for businesses aiming for the highest standards of cleanliness. As a trusted name with all-India supply ability, we assure you of the best-in-class durability and superior performance, setting our UV Systems apart in terms of quality and innovation. Choose our UV System for your critical processes and experience technology designed to deliver the highest level of operational excellence and safety.

UV Disinfection System

MOQ : 1 Unit

  • Accessories
  • UV Lamp, Quartz Sleeve, Power Supply Unit, Pipe Fittings
  • Application
  • Water Disinfection for Residential and Commercial Use
  • Capacity
  • 500 liters/hour
  • Dimension (L*W*H)
  • 600mm x 180mm x 130mm
  • Features
  • Chemical-free, Easy Installation, Maintenance-free, Environment Friendly
  • Flow Rate
  • 500 LPH
  • Installation Type
  • Other, Wall Mount
  • Material
  • Stainless Steel
  • Mounting Type
  • Wall Mounted
  • Power
  • 25W
  • Purifying Function
  • UV Disinfection (Removes viruses, bacteria, and pathogens)
  • Technology
  • UV Sterilization
  • Temperature
  • 2C - 40C
  • Type
  • Other, UV Disinfection System
  • Usage
  • Kills bacteria, viruses, and other microbes in water
  • Valve Type
  • Solenoid Valve
  • Voltage
  • 220V/50Hz
  • Water Source
  • Borewell Water, Municipal Water, Tap Water
  • Weight (kg)
  • Approx. 4.5 kg

UVGI For AHU Machine

MOQ : 1 Unit

  • Accessories
  • Stainless steel fixing clamps, Electronic ballast, Quartz tube sleeve
  • Application
  • Air Handling Unit, HVAC Systems, Clean Rooms, Hospitals, Commercial Spaces
  • Capacity
  • Designed for AHU air handling capacity up to 10,000 CFM or customized
  • Dimension (L*W*H)
  • Custom/Varies with Model (e.g., 600mm x 100mm x 85mm)
  • Features
  • Energy efficient, Low Maintenance, High Disinfection Efficiency, Safe for HVAC ducts
  • Flow Rate
  • As per AHU airflow
  • Installation Type
  • Other, AHU Duct Mounted
  • Material
  • Other, Stainless Steel and Quartz Glass
  • Mounting Type
  • Horizontal or Vertical (as per AHU design)
  • Power
  • 35-150W (depends on model and size)
  • Purifying Function
  • Ultraviolet Germicidal Irradiation (UVGI) for air disinfection
  • Technology
  • UV-C (253.7nm wavelength)
  • Temperature
  • 0C to 60C operating range
  • Type
  • Other, UVGI For AHU Machine
  • Usage
  • Air Disinfection, HVAC Pathogen Control
  • Voltage
  • 220-240V AC, 50Hz
  • Water Source
  • Not Applicable (Air Purification)
  • Weight (kg)
  • 4-10 kg depending on size

Big UV System For STP And ETP

MOQ : 1 Unit

  • Accessories
  • Control Panel, Quartz Sleeves, UV Monitoring System
  • Application
  • Effluent Treatment, Sewage Treatment Plants
  • Capacity
  • Up to 100 m3/hr
  • Dimension (L*W*H)
  • 1800mm x 350mm x 400mm
  • Features
  • Corrosion Resistant, Low Maintenance, High Disinfection Rate
  • Flow Rate
  • Variable, up to 100 m3/hr
  • Installation Type
  • Other, Vertical/Horizontal
  • Material
  • Other, Stainless Steel 304/316
  • Mounting Type
  • Floor Mounted
  • Power
  • 2 kW
  • Purifying Function
  • Ultraviolet (UV) Disinfection
  • Technology
  • High-Intensity UV-C Lamps
  • Temperature
  • 5C - 45C
  • Type
  • Other, Big UV System for STP/ETP
  • Usage
  • Disinfection of Treated Effluent
  • Valve Type
  • Automatic/Manual
  • Voltage
  • 220V/380V, 50/60Hz
  • Water Source
  • Wastewater (Sewage/Industrial)
  • Weight (kg)
  • 65 kg

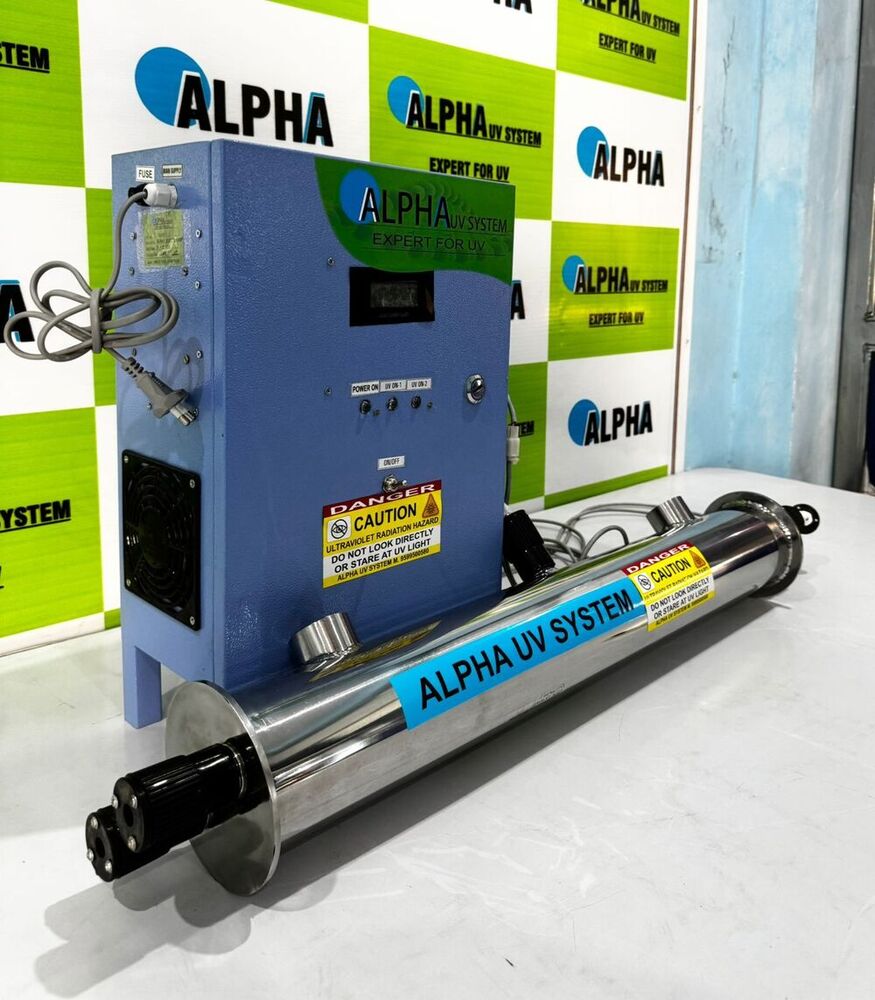

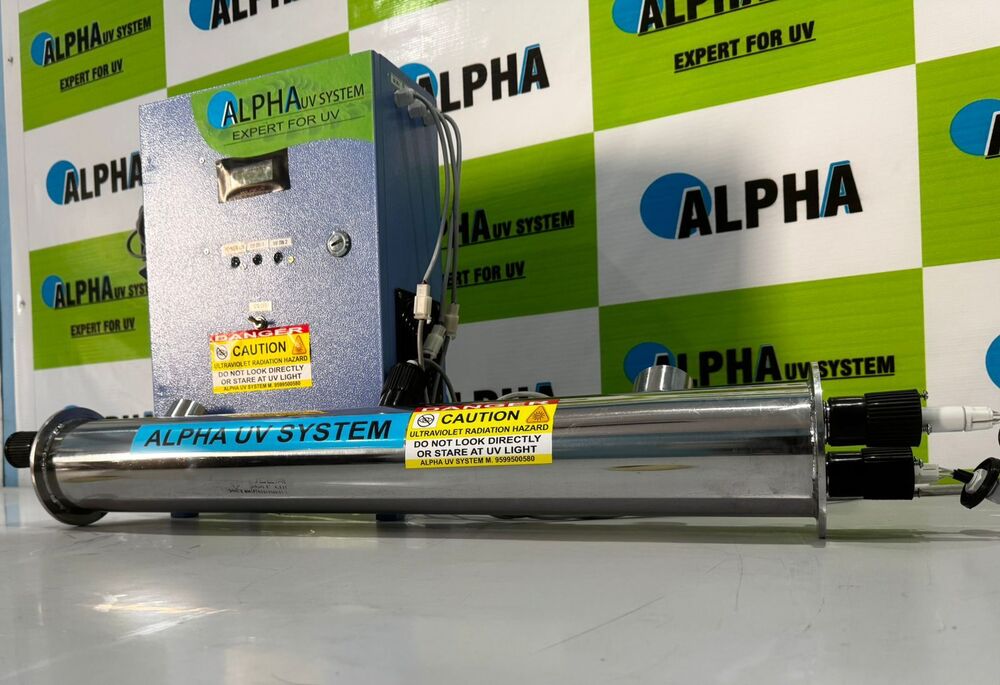

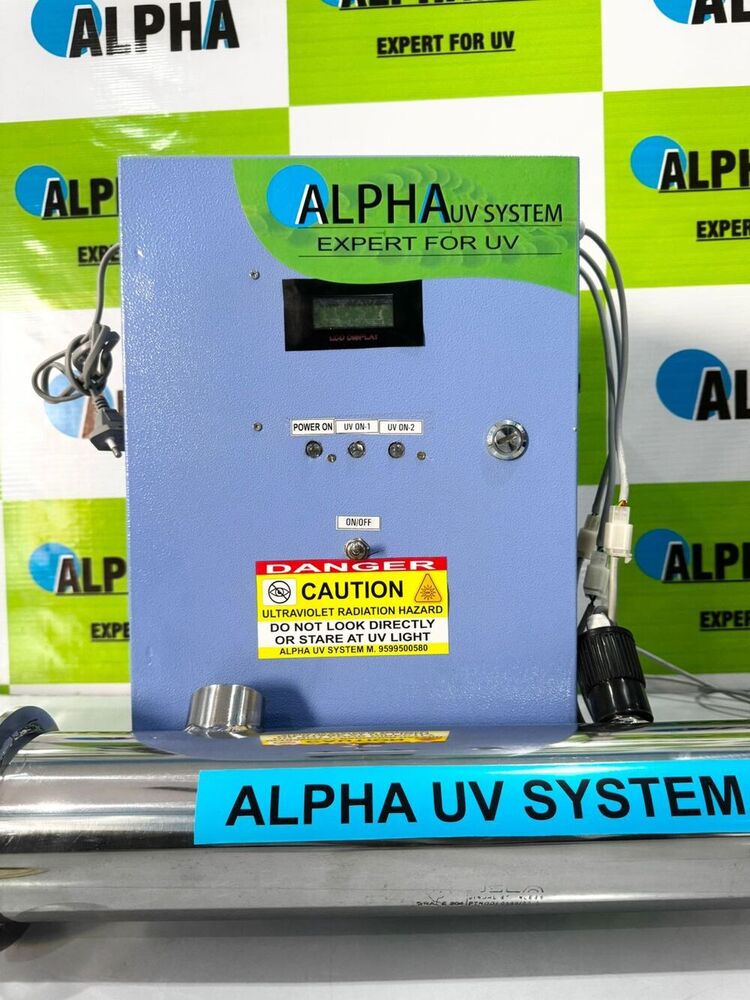

UV System With Intensity Monitor

MOQ : 1 Unit

  • Accessories
  • UV Intensity Sensor, Quartz Sleeve, Electronic Ballast, Control Panel
  • Application
  • Drinking Water Treatment, Process Water Disinfection
  • Capacity
  • 2000 LPH (Litres Per Hour)
  • Dimension (L*W*H)
  • 950 mm x 180 mm x 285 mm
  • Features
  • Automatic UV Intensity Monitoring, LED Indicator, SS Construction, Easy Maintenance
  • Flow Rate
  • 2000 Litres/Hour
  • Installation Type
  • Other, Wall Mounted / Skid Mounted
  • Material
  • Other, Stainless Steel 304
  • Mounting Type
  • Horizontal / Vertical
  • Power
  • 40W
  • Purifying Function
  • UV Disinfection
  • Technology
  • UV Sterilization with Intensity Monitoring
  • Temperature
  • Up to 50C
  • Type
  • Other, UV System With Intensity Monitor
  • Usage
  • Industrial, Commercial, Institutional
  • Valve Type
  • Ball Valve Compatible
  • Voltage
  • 230V AC, 50Hz
  • Water Source
  • Municipal, Borewell or Industrial Water
  • Weight (kg)
  • 12 kg (approx.)

Small UV System

MOQ : 1 Unit

  • Accessories
  • UV Lamp, Quartz Sleeve, Ballast, Clamps
  • Application
  • Water Purification
  • Capacity
  • 2000 LPH
  • Dimension (L*W*H)
  • 46 x 6 x 7 cm
  • Features
  • Chemical Free, Low Maintenance, Easy Installation
  • Flow Rate
  • 2000 Liters/Hour
  • Installation Type
  • Wall Mounted
  • Material
  • Stainless Steel
  • Mounting Type
  • Horizontal
  • Power
  • 28 Watt
  • Purifying Function
  • UV Sterilization
  • Storage Capacity
  • No Storage
  • Technology
  • Ultraviolet (UV)
  • Temperature
  • 5C - 45C
  • Type
  • Other, Small UV System
  • Usage
  • Drinking Water, Industrial
  • Valve Type
  • Inlet/Outlet Valve
  • Voltage
  • 220V AC
  • Water Source
  • Municipal Water/RO Water
  • Weight (kg)
  • 2.3 kg
