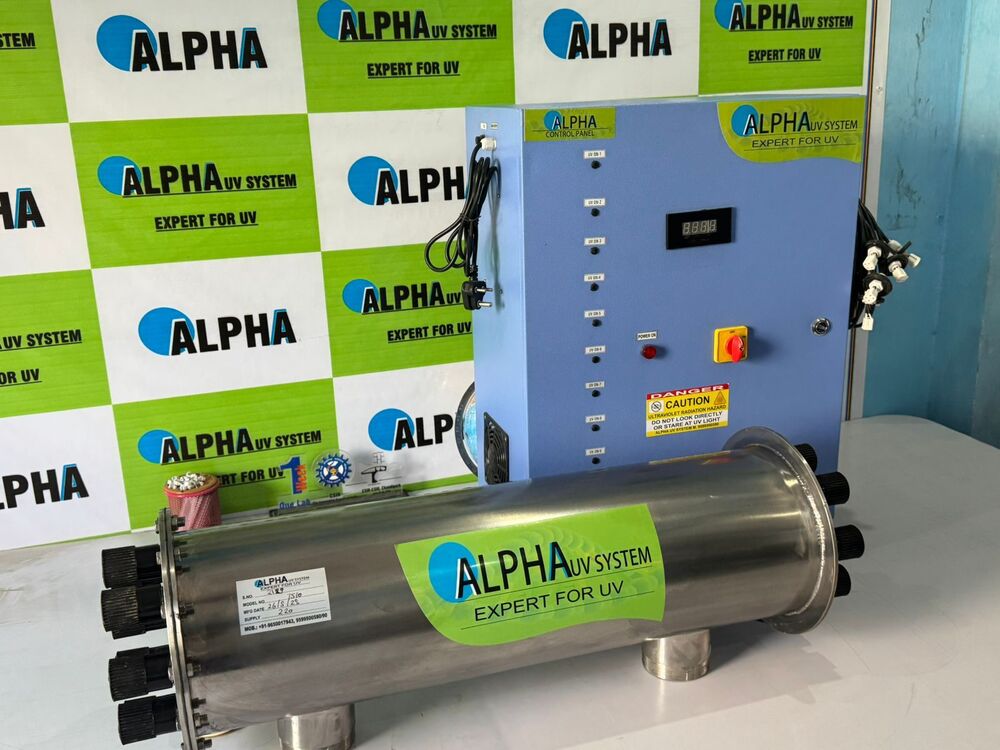

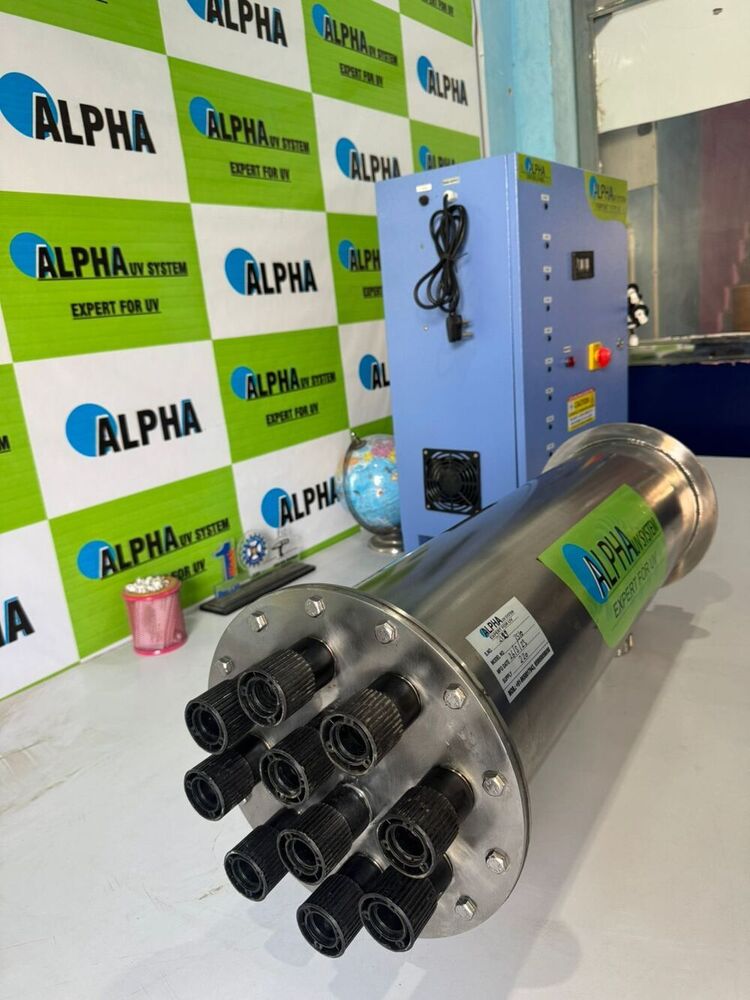

Big UV System For STP And ETP

Get a Price/Quote

MOQ : 1 Unit

Big UV System For STP And ETP Specification

Accessories
Control Panel, Quartz Sleeves, UV Monitoring System

Usage
Disinfection of Treated Effluent

Technology
High-Intensity UV-C Lamps

Flow Rate
Variable, up to 100 m3/hr

Features
Corrosion Resistant, Low Maintenance, High Disinfection Rate

Type
Big UV System for STP/ETP

Material
Stainless Steel 304/316

Purifying Function
Ultraviolet (UV) Disinfection

Power
2 kW

Valve Type
Automatic/Manual

Installation Type
Vertical/Horizontal

Temperature
5C - 45C

Water Source
Wastewater (Sewage/Industrial)

Dimension (L*W*H)
1800mm x 350mm x 400mm

Voltage
220V/380V, 50/60Hz

Weight (kg)
65 kg

Application
Effluent Treatment, Sewage Treatment Plants

Mounting Type
Floor Mounted

Capacity
Up to 100 m3/hr

Inlet/Outlet Size
Flanged, 100 mm - 200 mm

Protection Class
IP54

Display
Digital Monitoring Panel

Control System
Microprocessor Based

Lamp Type
Low Pressure/High Output UV Lamps

UV Dose
30000 Ws/cm2

Lamp Life
9000-12000 hours

Compliance
Meets International Standards for UV Disinfection

Safety Features
Automatic Power Off, Leakage Detection

Big UV System For STP And ETP Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
50 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Big UV System For STP And ETP

Introducing the Elite Big UV System For STP And ETP-a monumental advancement in wastewater disinfection technology. Engineered with brilliant precision, this system features the latest high-intensity UV-C lamps, offering a meritorious lamp life of 9,000-12,000 hours. Designed for effluent and sewage treatment plants, it boasts stainless steel construction, a digital monitoring panel, and a microprocessor-based control system. With automatic safety shutoff, IP54 protection, and both manual/automatic valve operation, it delivers superior corrosion resistance and a high disinfection rate. Take advantage of this exceptional sale offered by India's leading exporter, manufacturer, and supplier.

Superior Applications and Robust Features for Diverse Sites

The Big UV System For STP And ETP is expertly engineered for use in effluent and sewage treatment plants, ensuring high disinfection rates for treated wastewater. Its flexible installation options-vertical or horizontal-and corrosion-resistant stainless steel build make it perfect for both municipal and industrial settings. Special features include microprocessor-based controls, UV monitoring, digital display, leak detection, and automatic power-off functionality, meeting international UV disinfection standards for uncompromised site safety and versatility.

Sample Access, Packaging, and Premier Supply Offers

Samples of the Big UV System For STP And ETP are available on request, allowing assessment before purchase. We offer secure packaging to ensure each system arrives intact and fully operational. With a meritorious supply ability for high-volume orders, we welcome your asking price inquiries and provide competitive offers. Enjoy prompt delivery throughout India and export markets. Contact us for sample availability and packaging details to benefit from this elite technology at an outstanding value.

FAQ's of Big UV System For STP And ETP:

Q: How does the Big UV System benefit sewage and effluent treatment plants?

A: The Big UV System utilizes high-intensity UV-C lamps to provide effective disinfection for treated wastewater in both STP and ETP. This results in safe, compliant effluent, reducing pathogenic threats and contributing to environmental protection.

Q: What are the unique safety features of this UV System?

A: Equipped with automatic power-off, leakage detection, and a digital monitoring panel, the system ensures safe, hassle-free operation with real-time status visibility and quick incident response, protecting both users and equipment.

Q: Where can this UV Disinfection System be installed?

A: The unit is suitable for installation in both municipal and industrial STPs and ETPs. It supports vertical and horizontal setups and can be floor-mounted to adapt to various site requirements.

Q: What is the process for requesting a sample or asking price?

A: You can request a sample or submit asking price inquiries through our exporter or supplier team. We provide samples for assessment and comprehensive pricing or offer details upon contact.

Q: How easy is it to maintain the Big UV System?

A: The system is designed with low maintenance in mind, featuring corrosion-resistant stainless steel materials, automatic safety features, and easy-access components like quartz sleeves and control panels.
